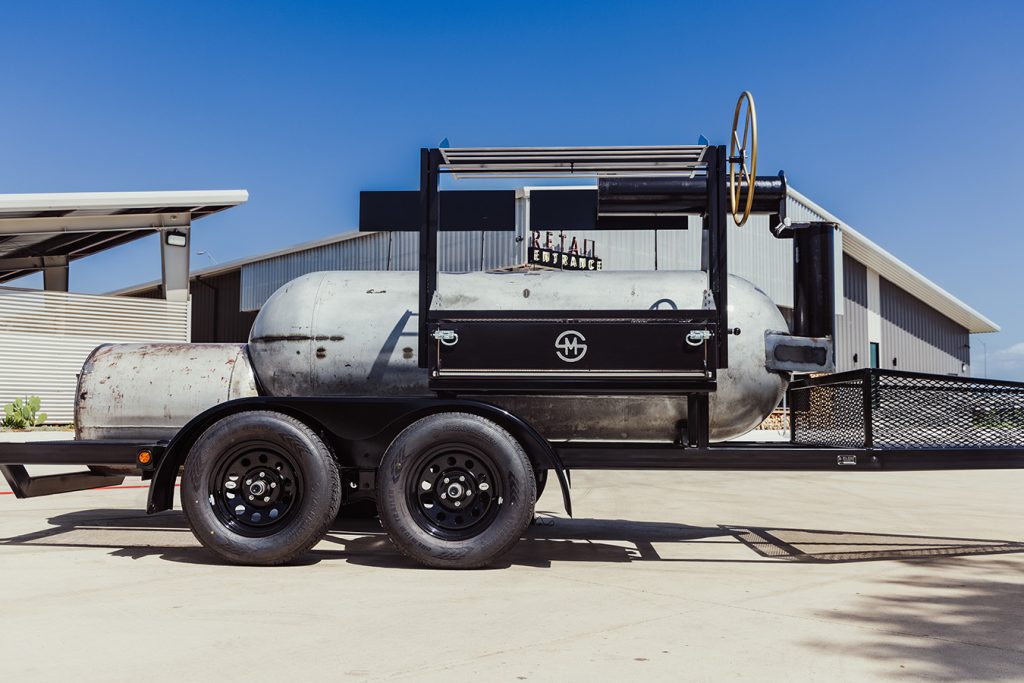

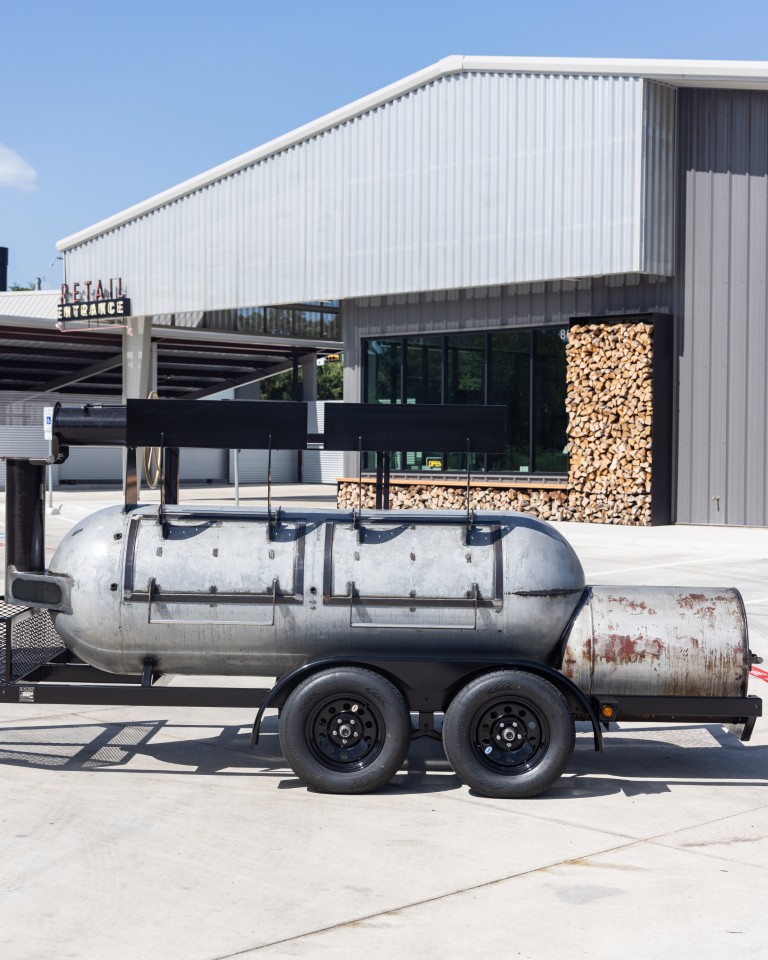

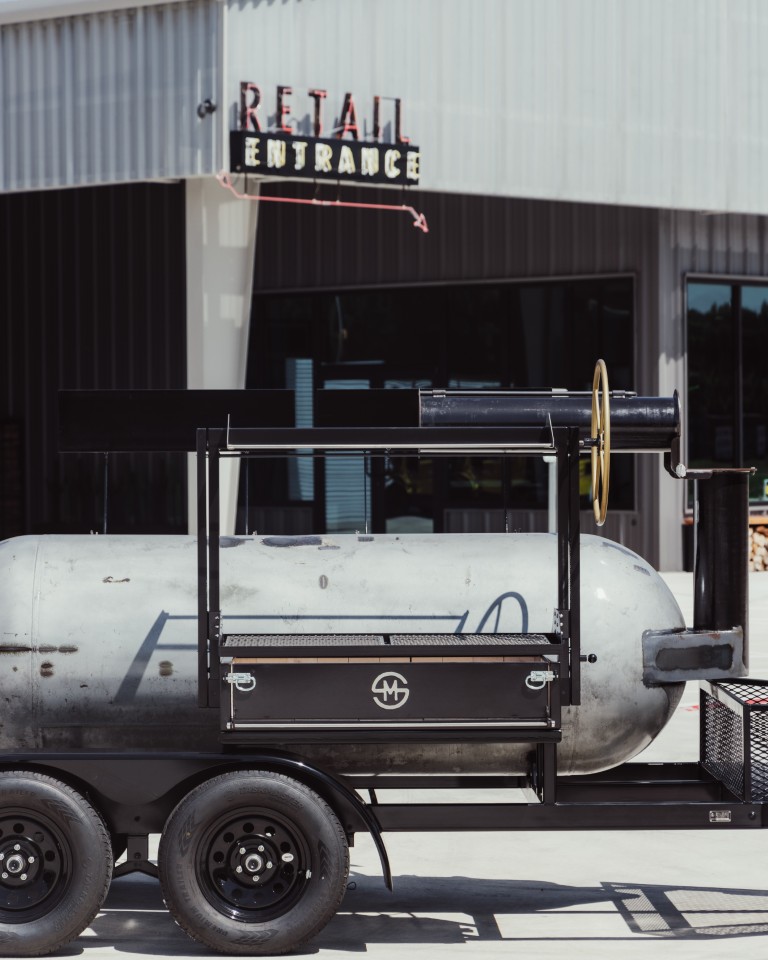

500 GALLON TRAILER WITH 48" SANTA MARIA

Barbecue is a part of the collective identity of Texas, and we set out to build a timeless, and uniquely identifiable smoker. With hand-built craftsmanship to stand the test of time, it can be passed down for generations. We build 500, and 1000 gallon offset smokers for competition, commercial, and residential use. Each one is built to suit the pitmaster's needs.

CONTACT US

500 GALLON TRAILER WITH 48" SANTA MARIA - $24,995

SMOKER SPECS

COOKING CAPACITY: 12-14 BRISKETS
2 COOKING GRATES
2 COOK CHAMBER DOORS
2 TEL-TRU THERMOMETERS
30” FIREBOX WITH AIR GAP
8″ SMOKESTACK FULLY WELDED
1 GREASE DRAIN
HIGH-TEMP CLEAR COAT

48″ SANTA MARIA SPECS

4′ X 2′ FIRE BRICK GRILL BASIN
UPPER FRAME ASSEMBLY WITH WHEEL AND LIFTING TRAY
2 EXPANDED METAL COOKING GRATES

TRAILER SPECS

2″ X 4″ X 3/16″” RECTANGULAR TUBING FRAME
(PAINTED BLACK)
2 x 3,500 LBS AXLES
2″ COUPLER
TRAILER JACK
FIREWOOD RACK
SAFETY CHAINS

APPROXIMATE WEIGHT: 3,430 lbs
OVERALL LENGTH: APPROXIMATELY 252”
OVERALL WIDTH: APPROXIMATELY 90”
OVERALL HEIGHT WITH SMOKESTACK IN TRAVEL POSITION: 81″
OVERALL HEIGHT WITH SMOKESTACK IN COOKING POSITION: 105″

UPGRADES

CLEAR-COATED COUNTERWEIGHTS	$1,300
EXTRA THERMOMETERS WITH FITTINGS	$150/each
UPPER SLIDE-OUT COOKING GRATES ONLY (NO SAUSAGE RODS)	$350/each
UPPER SLIDE-OUT COOKING GRATES WITH SAUSAGE RODS	$435/each
INSULATED FIREBOX	$350
SMOKESTACK ON HINGE WITH CRADLE FOR TRAVEL	$815
SMOKESTACK ON BOLT-ON FLANGE	$320
SANTA MARIA PLANCHA (accommodates up to 2)	$250/each
SANTA MARIA V-GRATE (accommodates up to 2)	$335/each
SANTA MARIA LID	$250
48″ x 30″ STAINLESS PREP TABLE	$3,849
CAST IRON GRATES	Half Set: $649 / Full Set: $1,298
*ADDITIONAL SANTA MARIA COMPONENTS AVAILABLE
